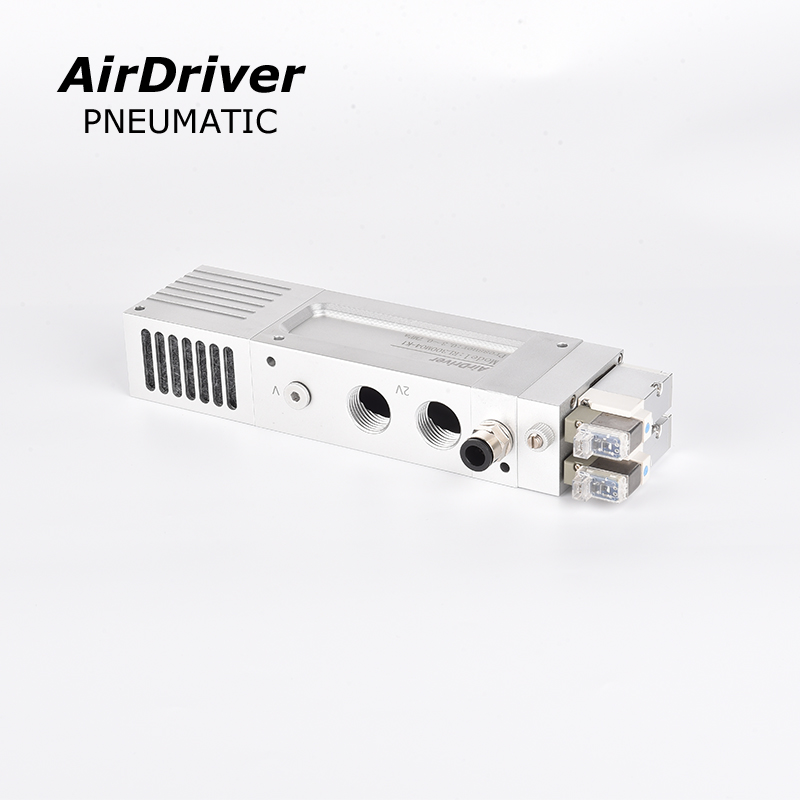

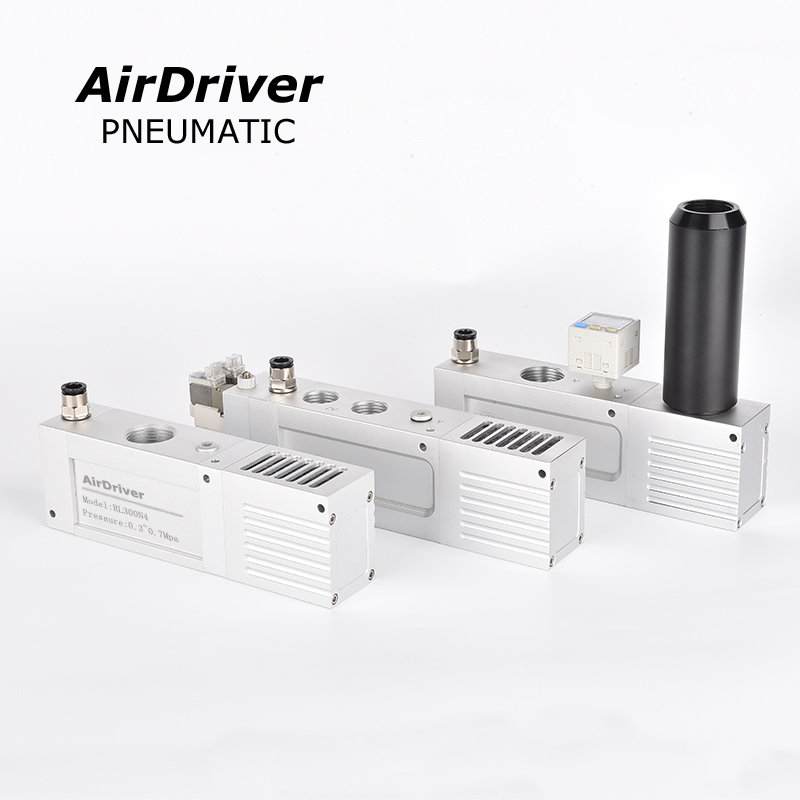

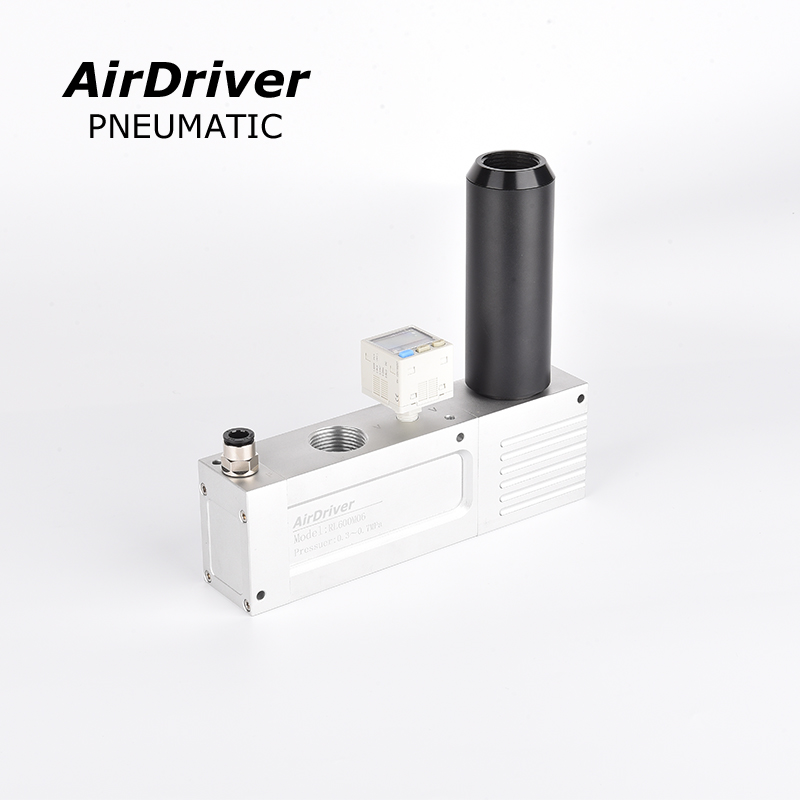

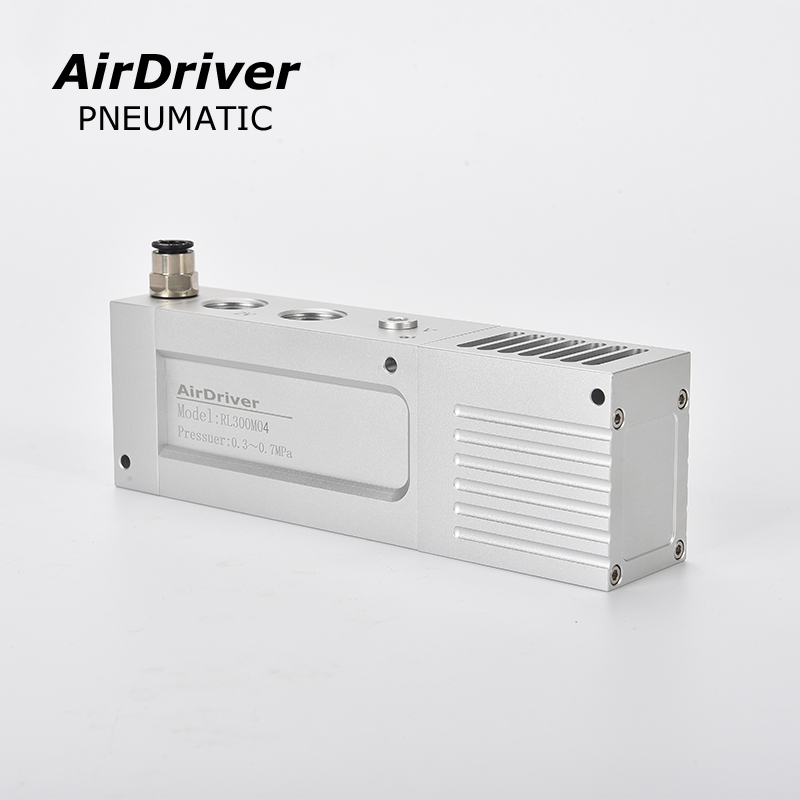

With Air Supply And Release Valve Options.
Pressure Gauge need Order Seperately.
| 1 | 2 | 3 | 4 | 5 | 6 | |||
| Model | Max Vacuum Flow | Standard supply pressure | Vacuum Port | Exhaust method | Supply valve/Release valve combination | |||
| RL | 300-300NL/Min
600-600NL/Min |
RL300 | RL600 | RL600 | 06-G3/4
08-2XG1/2 |
Nil-Silencer exhaust
P-Port exhaust |
Nil-No Valve
K1-Supply&Release Valve K2-Supply Valve |
|
| Nil/K1/K2 | Nil | K1/K2 | ||||||
| M | 4.5bar | 4.5bar | 5bar | |||||
| L | 6bar | 6bar | 6.5bar | |||||
| S | 3.5bar | 3.5bar | 4bar | |||||
| Model example: RL300M06-K1 | ||||||||
| Specification: | |||||||
| Model | RL300M | RL300L | RL300S | RL600M | RL600L | RL600S | |
| Standard supply pressure | Nil | 4.5bar | 6.0bar | 3.5bar | 4.5bar | 6.0bar | 3.5bar |
| K1 | |||||||
| K2 | |||||||
| Max Vacuum Pressure(-Kpa) | 94 | 85 | 90 | 94 | 85 | 90 | |
| Max Vacuum Flow(NL/Min) | 300 | 600 | |||||
| Air Comsumption(NL/Min) | 135 | 105 | 123 | 270 | 210 | 123 | |
| Supply Pressure range(bar) | 3~7 | ||||||
| Working Temperature(℃) | 0~50 | ||||||
| Working Flow | Air | ||||||
