Mouting Accessories need order Separately
| Model | Applicable cylinder | Installation mode | Range of motion | Contact |

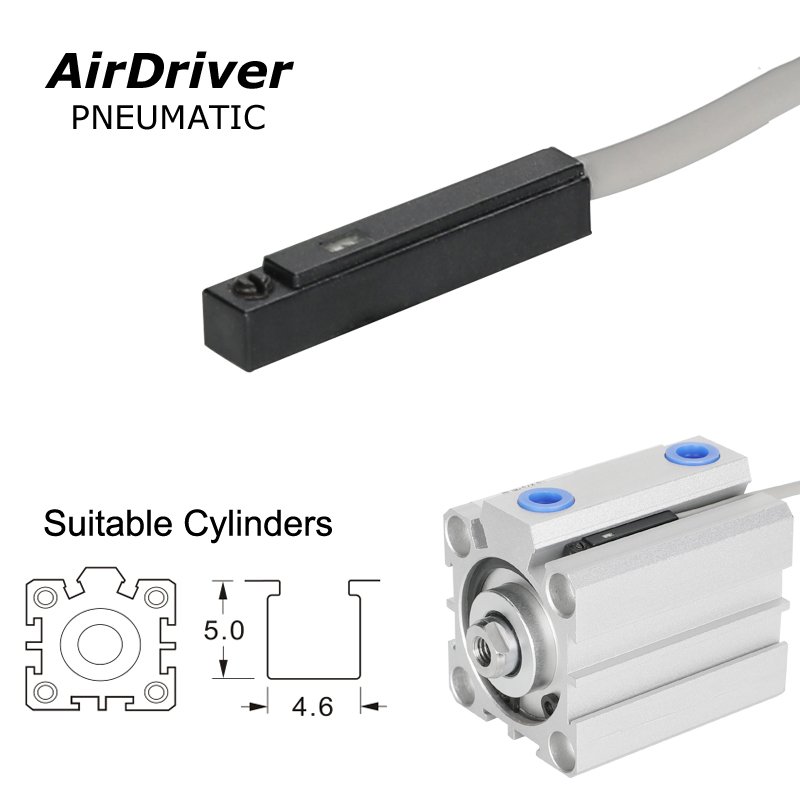

| D-M9B | SDA etc. | Track | 3-10mm | Without |
| D-M9BV | ||||
| D-M9N | ||||
| D-M9NV | ||||
| D-F8B | MHZ2 etc. | |||
| D-F8N | ||||

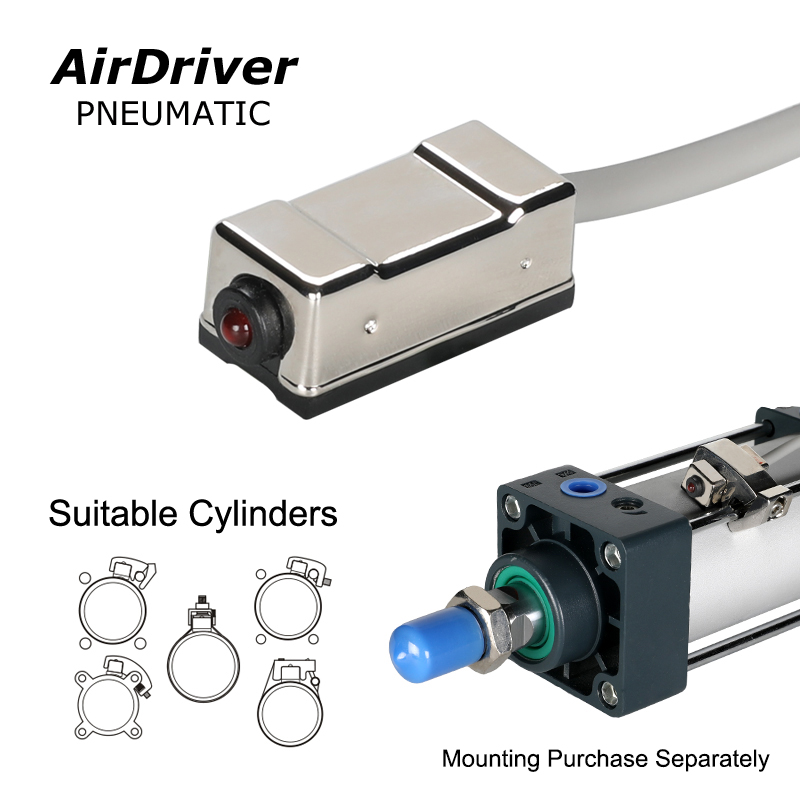

| CS1-F | SC/MA(L) | Pull rod/Annulus | 5-14mm | With |
| CS1-U | ||||
| CS1-J | SD(T)A/TN | Track | ||
| CS1-G | ACP/ACQ ATM/SDA |
|||

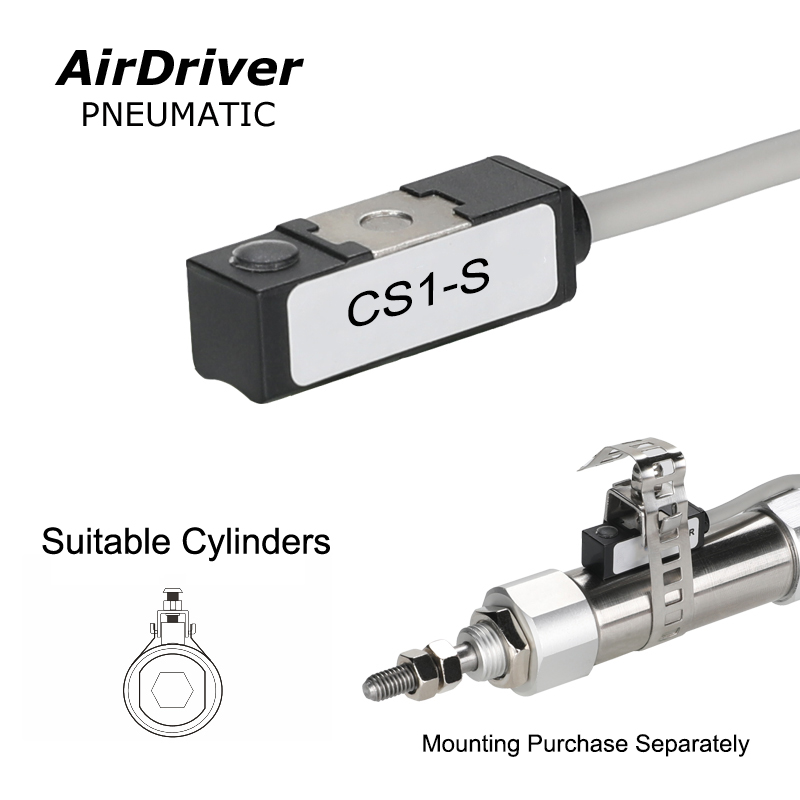

| CS1-S | MA/MAL | |||
| CS1-M | Track/Annulus | |||
| D-A73 | CQ2B | Track | ||
| D-C73 | CDJ2B etc. | Annulus | ||
| D-Z73 | CXS | Track | ||
| D-A93 | MGP | |||
| D-A73 | CU |
|
With contacts VS Without contacts |
||
| With contact | Without contact | |
| Leakage current | √ | 3-wire type: below 100ua 2-wire type: below 0.8ma |
| Operating time | 1.2ms | ≤1ms |
| Reliability | Higher | High |
| Hysteresis | Large | Small |
| Installation space | ||
| Self oscillation | √ | × |
| Impact resistance | 300m/s² | 1000m/s² |
| Load | PLC IC circuit / relay / small solenoid valve | |
| Working Voltage | DC24V (100/48/12/5/4) AC200/100 (48/24/12/5) |
DC24V (10-28V) |
