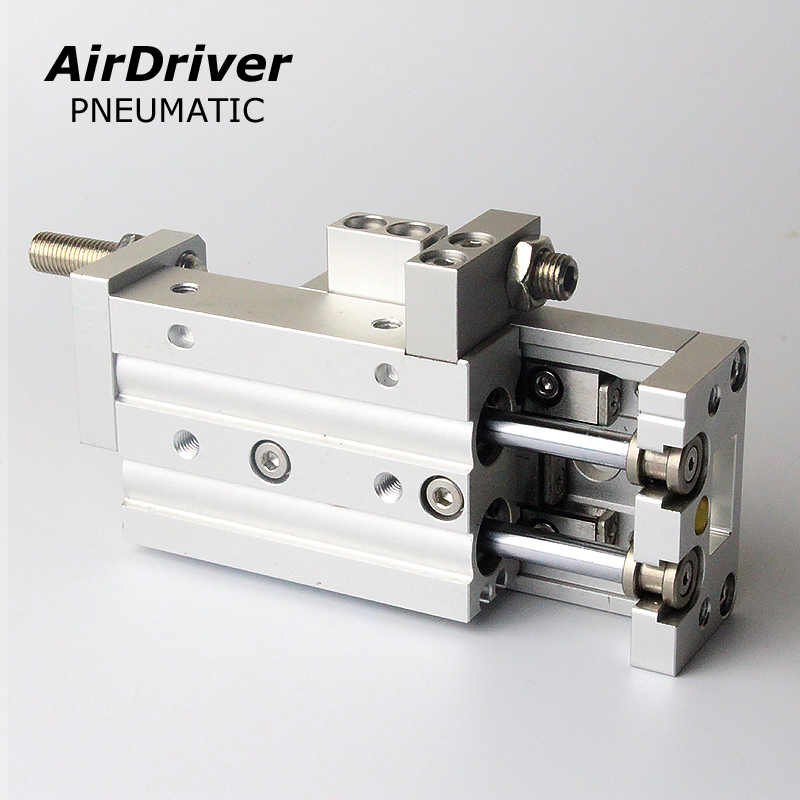

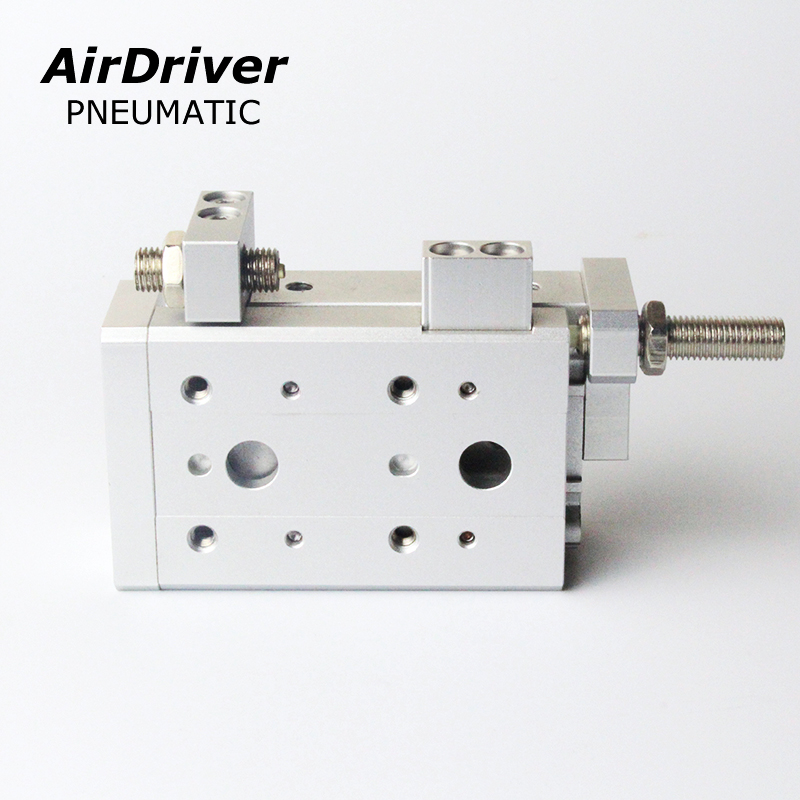

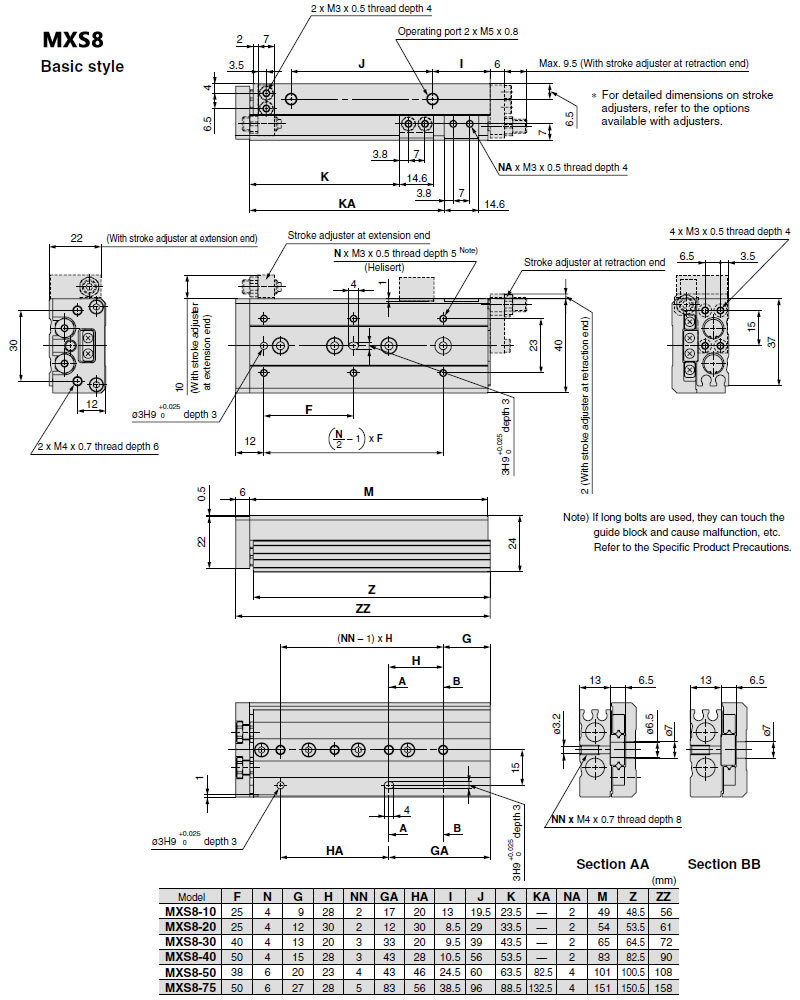

MXS Series SMC Model Air Slide Table

Bore size (mm) 6 8 12 16 20 25
Piping port size M3 x 0.5 M5 x 0.8 Rc 1/8, NPT 1/8, G 1/8
Fluid Air
Action Double acting
Operating pressure 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 60°C
Piston speed 50 to 500 mm/s
Cushion Rubber bumper (Standard, With stroke adjuster)

Shock absorber (Optional)

Lubrication Non-lube
Auto switch (Optional) Reed auto switch (2-wire, 3-wire)

Solid state auto switch (2-wire, 3-wire)

2-color indication solid state auto switch (2-wire, 3-wire)

Stroke length tolerance +1~0 mm
