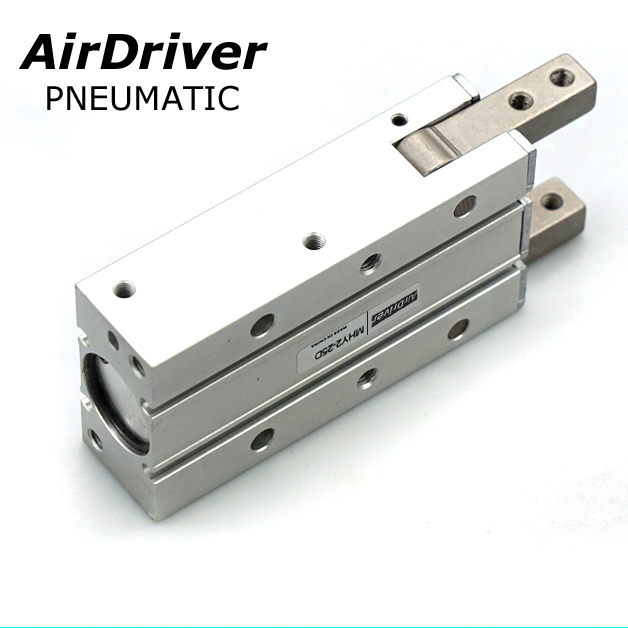

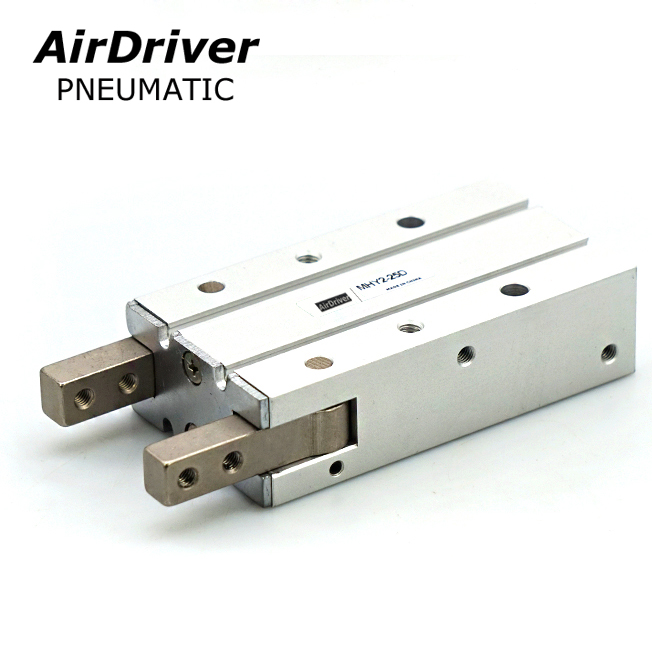

MHY Series SMC Model 180º Angular Type Air Gripper

Cam Type



Model Bore size(mm) Effective gripping force(N.m) Opening’Closing angle(Both sides) Weight(g)
Opening side Closing side
MHY2-10D 10 0.16 180° —3° 70
MHY2-16D 16 0.54 150
MHY2-20D 20 1.1 320
MHY2-25D 25 2.28 560
