Model Number For Example:

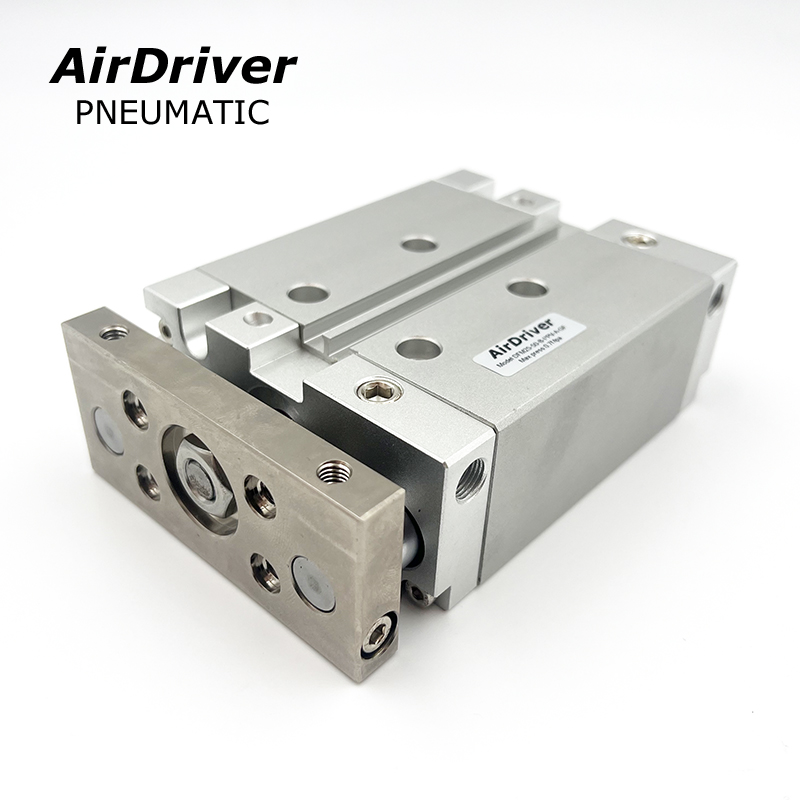

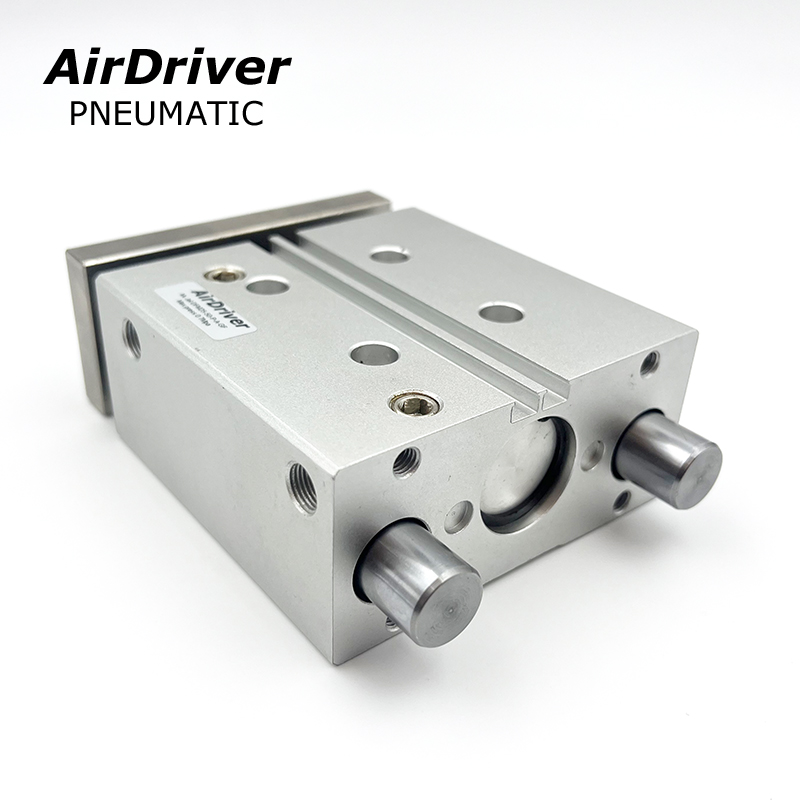

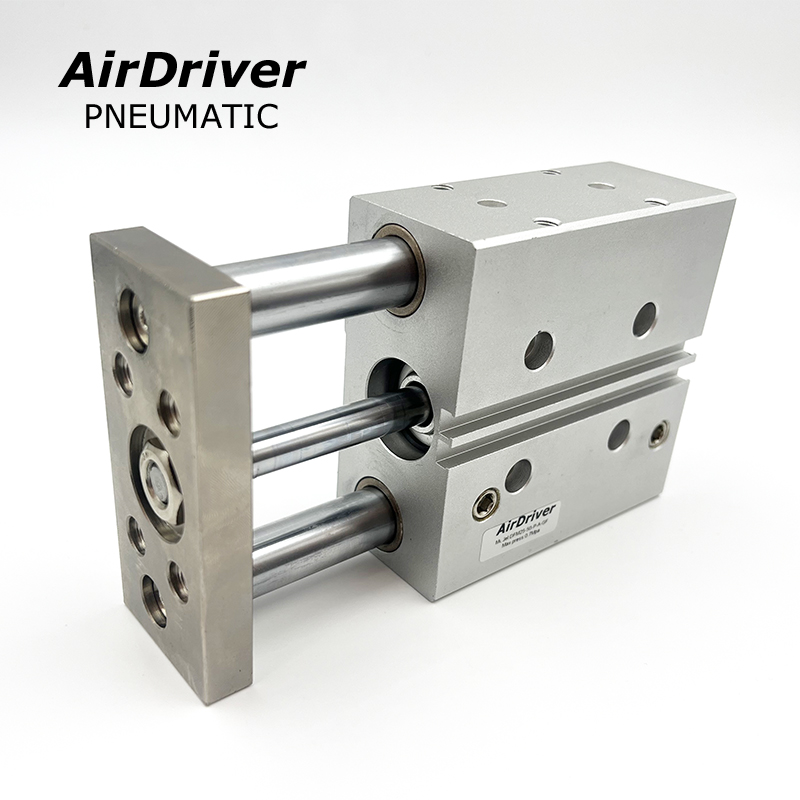

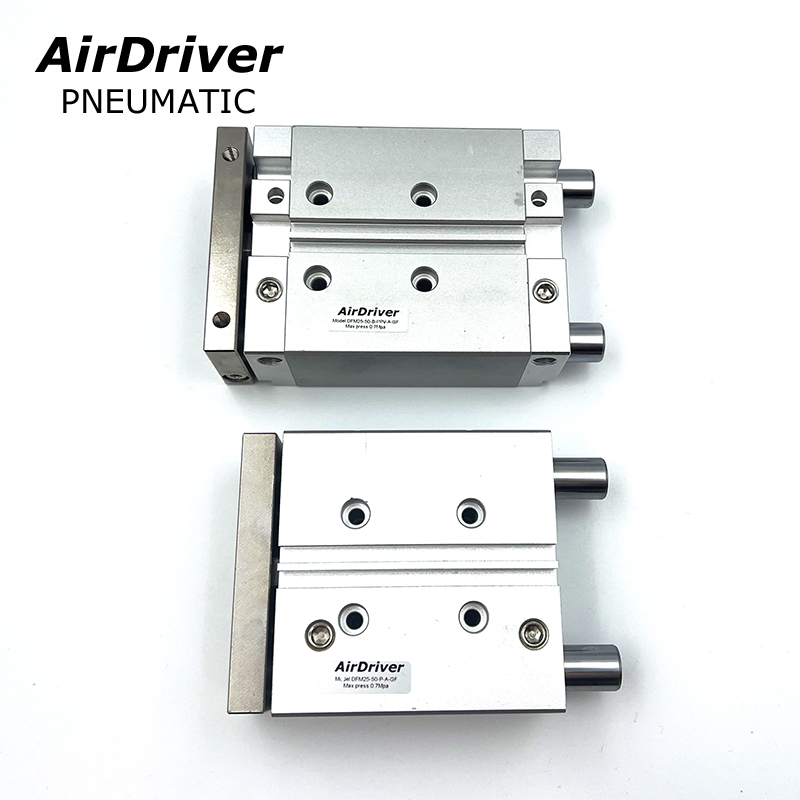

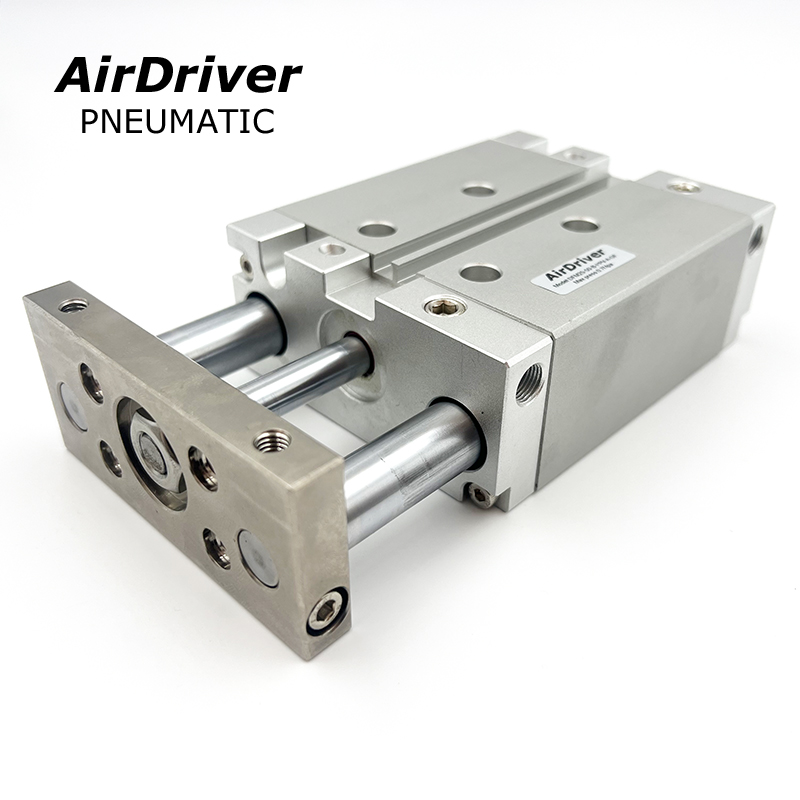

DFM25-50-B-PPV-A-GF with Buffer Options
DFM25-50-PPV-A-GF None Buffer Option
| Series | Bore size | Stroke Range | Generation | Cushioning | Magnet | Guide |
| DFM | 6 | 10~400 | Nil(max 200mm Stroke) | P(Elastic cushioning rings/plates on both sides) | A | GF(Plain bearing)
KF(Ball Bearing) |
| 10 | ||||||
| 12 | ||||||
| 16 | ||||||
| 20 | ||||||
| 25 | ||||||
| 32 | B(max 400mm Stroke) | P(Elastic cushioning rings/plates on both sides)
PPV(Pneumatic cushioning, adjustable at both ends) YSRW(Shock absorber, self-adjusting, progressive) |
||||
| 40 | ||||||
| 50 | ||||||
| 63 | ||||||
| 80 | ||||||
| 100 |
