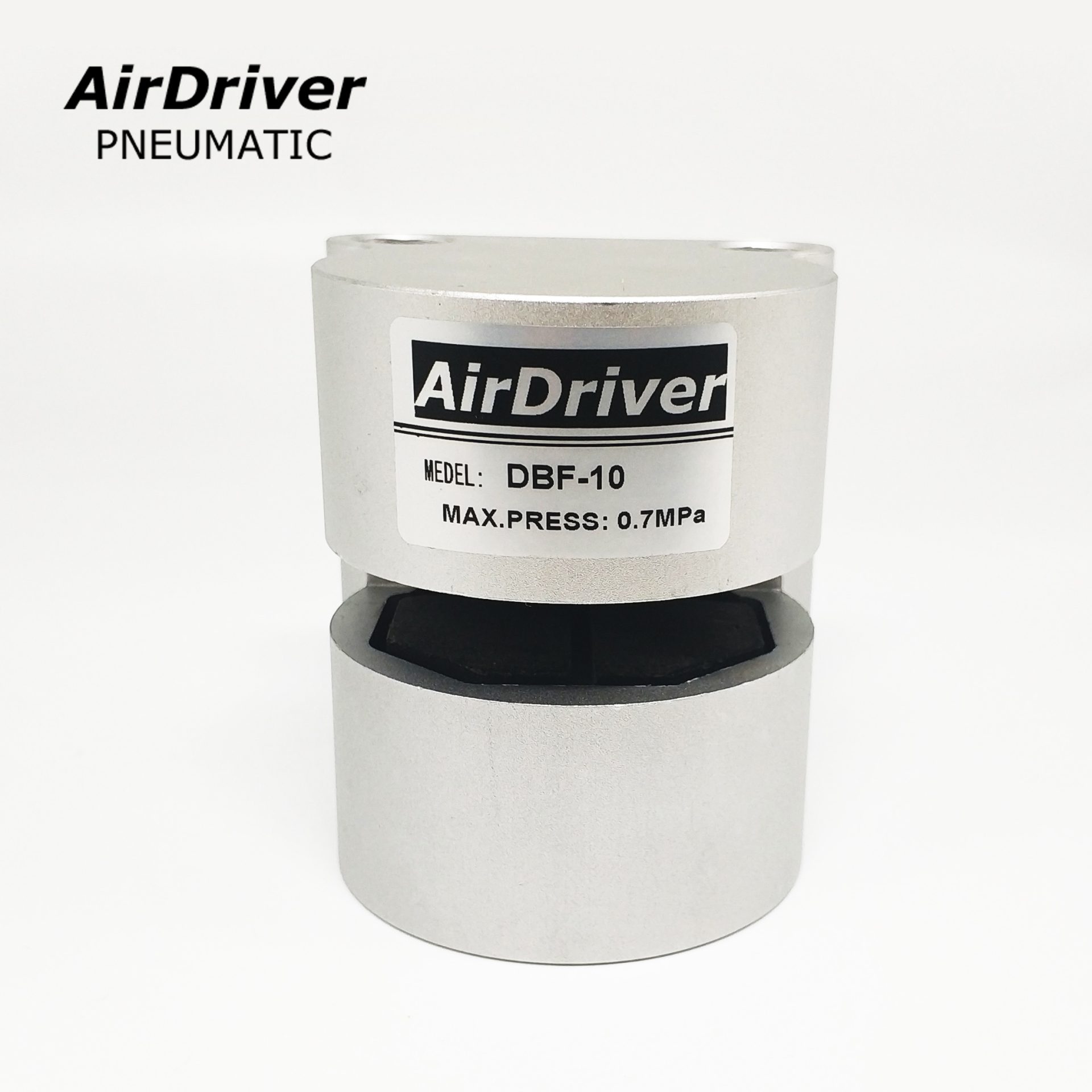

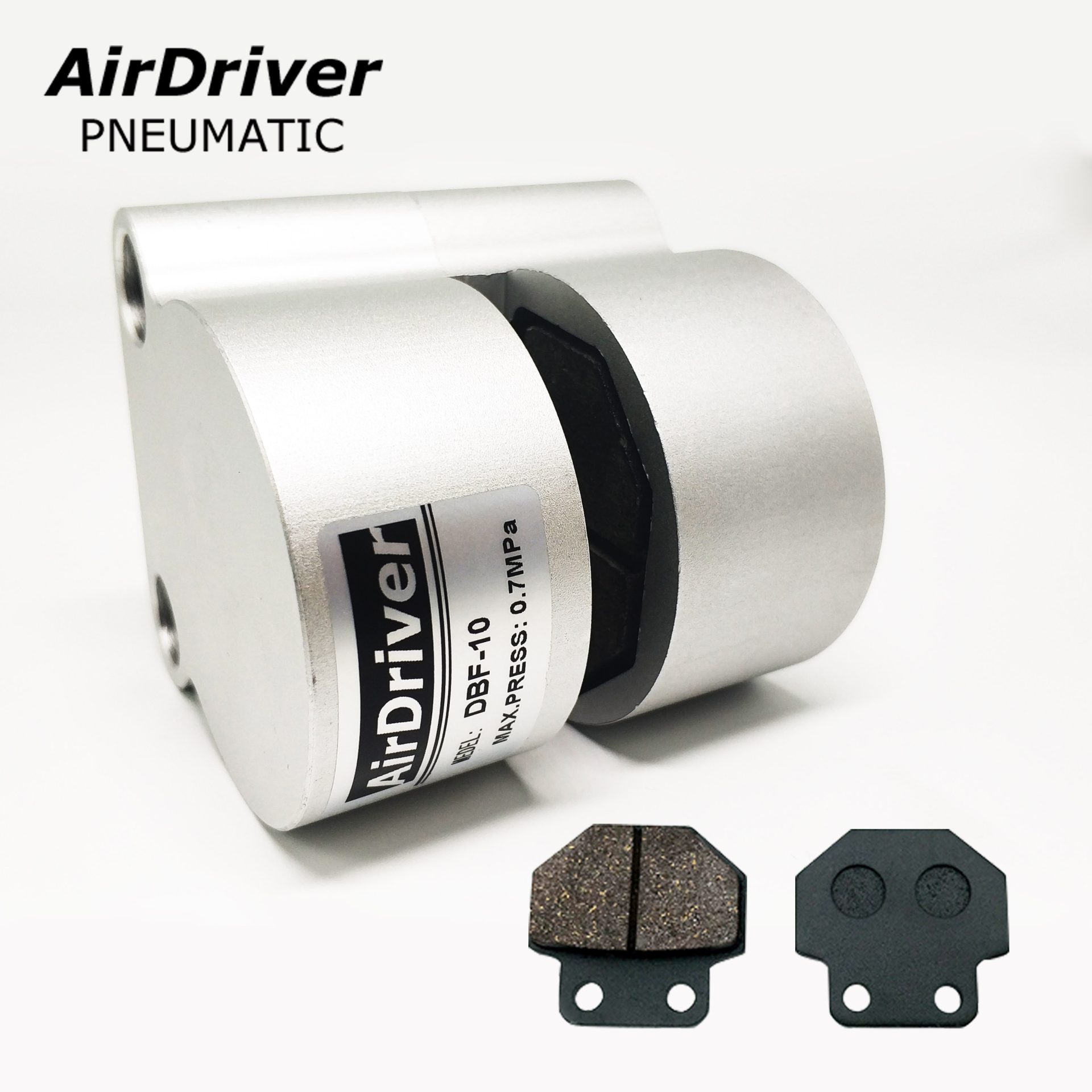

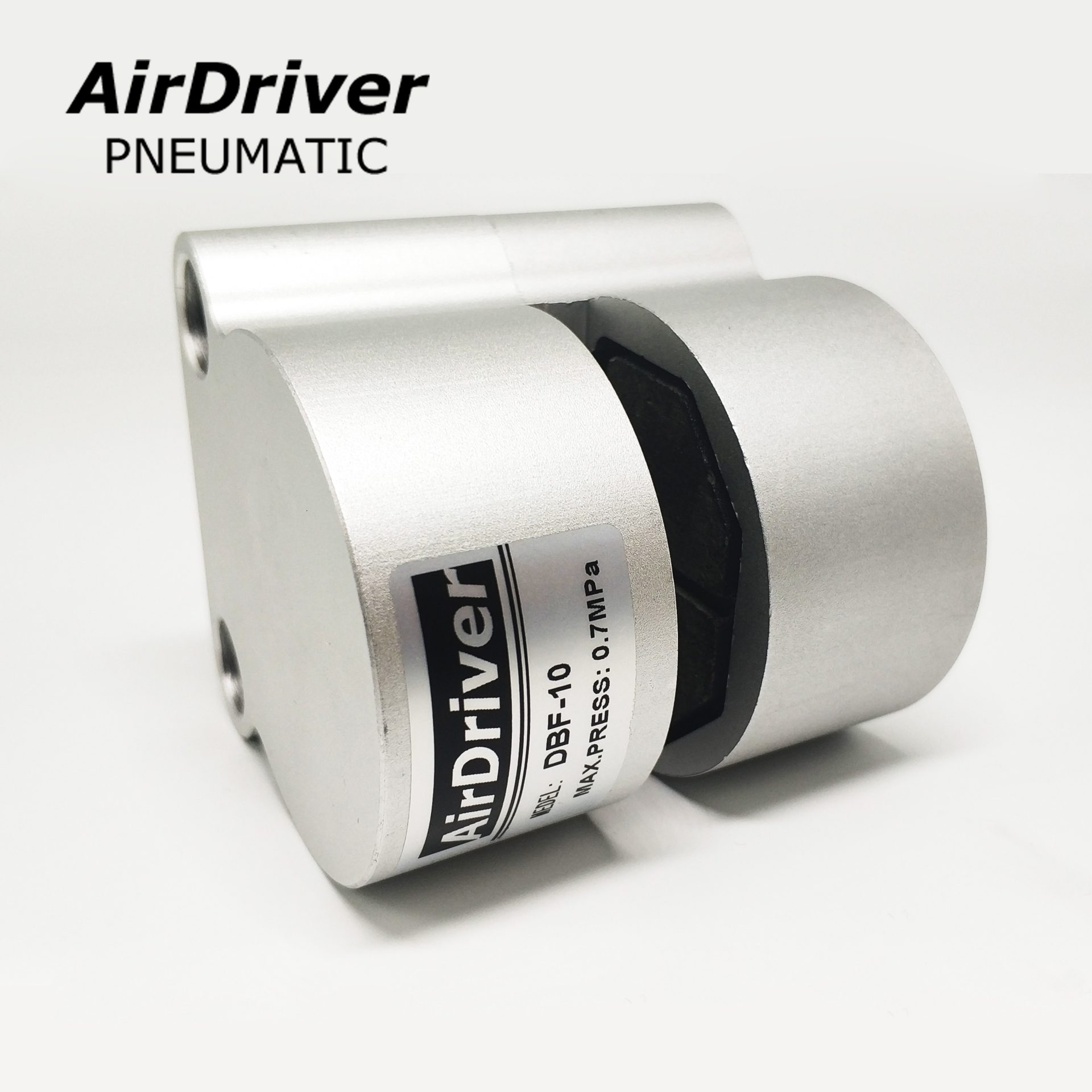

Pneumatic Disc Brake Cylinder
| MODEL: | DBF-L8 | DBF-L10 | DBF-L12 | DBF-L15 | DBF-L20 | |
| A | 86MM | 88MM | 90MM | 93MM | 98MM | |
| B | CLOSED | 0MM | 2MM | 4MM | 7MM | 12MM |
| OPEN | 10MM | 12MM | 14MM | 17MM | 22MM | |
| Disc Thickness | 8MM | 10MM | 10MM | 15MM | 20MM | |
| Disc Diameter | 220MM | 220MM | 220MM | 220MM | 220MM | |
| Max Pressure | 0.7Mpa | |||||
| Brake Power | 77kgs | |||||
| Brake Area | 19.63cm² | |||||
| Disc Abrasion | 5MM | |||||
| Weight(kgs) | 1.0kg | 1.1kgs | 1.2kgs | 1.2kgs | 1.3kgs | |
| Port Size | G1/8 | |||||
| Bore Size | φ50 | |||||
