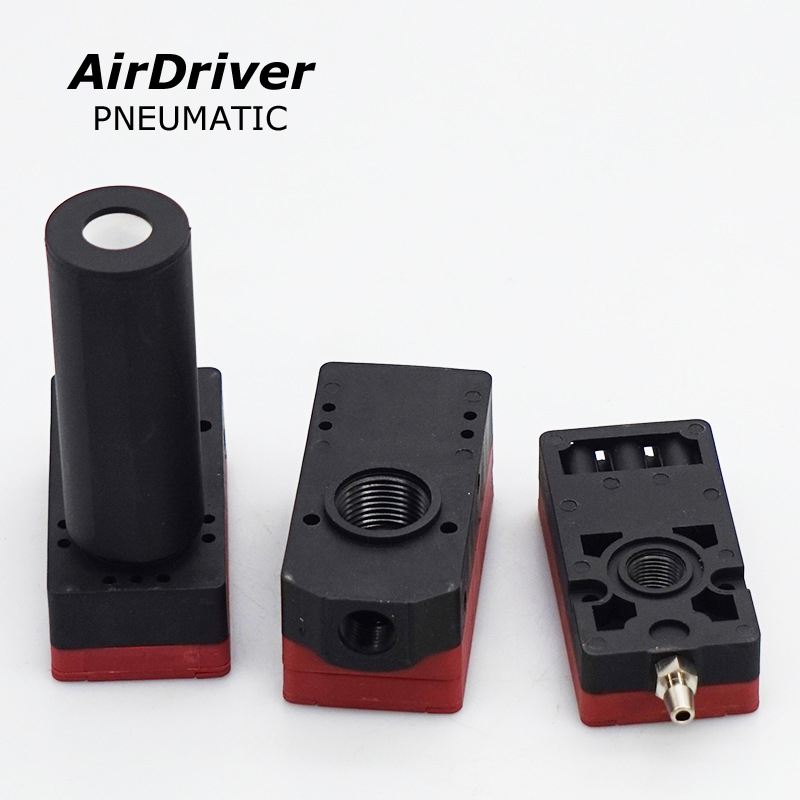

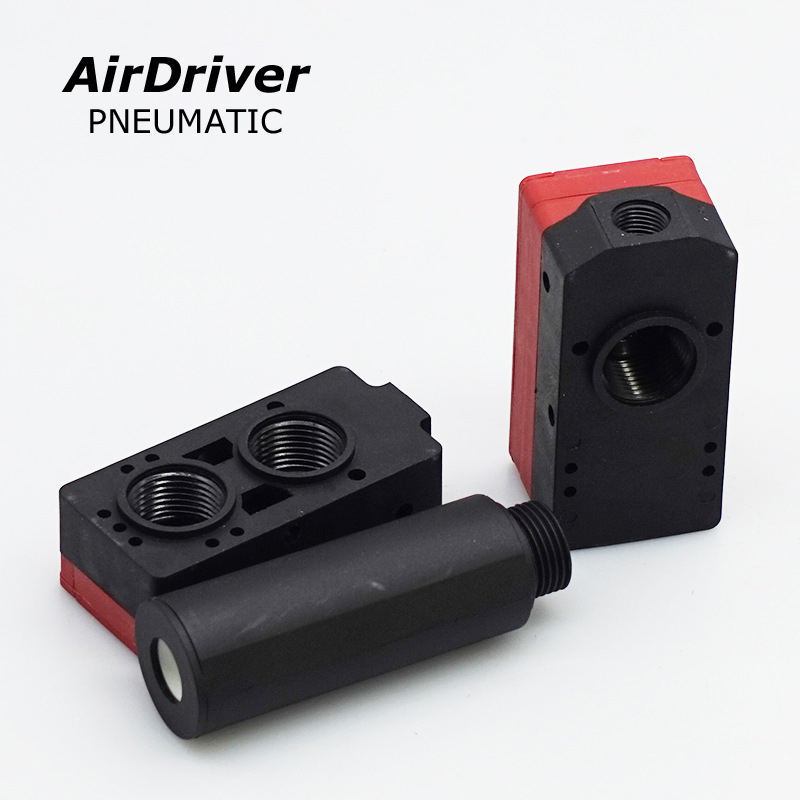

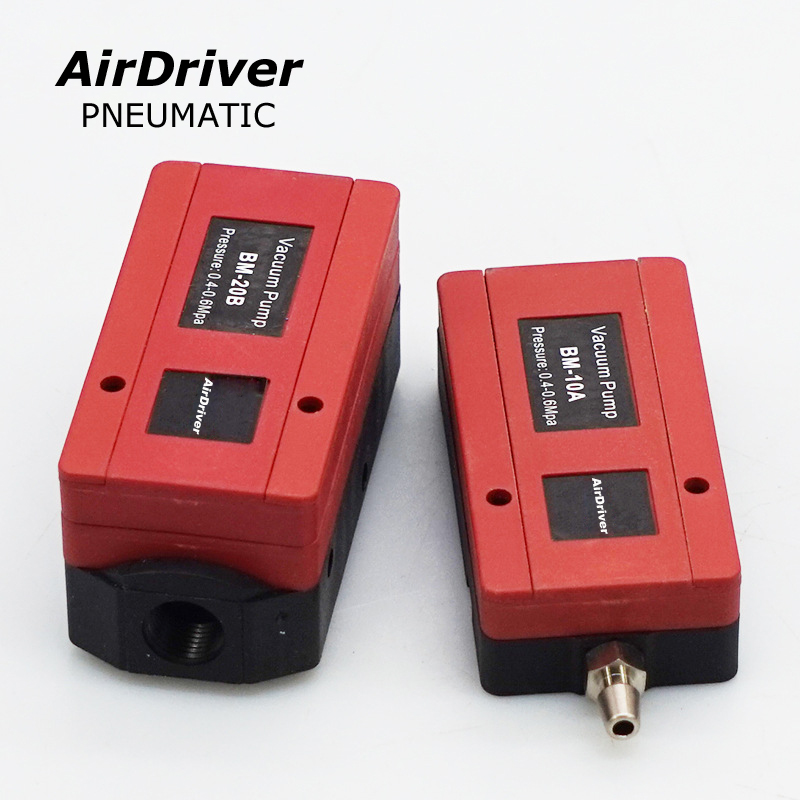

BM Series Mini Vacuum Generator

Model Pump Size Port Type: Supply Vacuum Exhaust

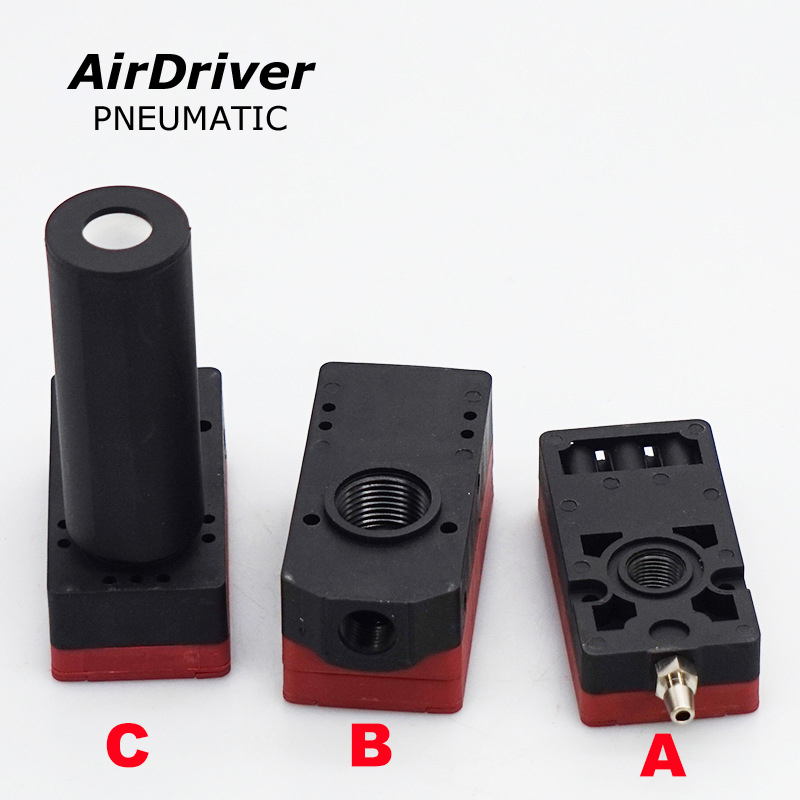

BM 5 A                                   B                                C M5-φ6                    G1/8″                     G1/8″ G1/8″                  G3/8″                 G3/8″ without Silencer                   Inside Silencer                      Outside Sinlencer
10
20
30



Model Supply pressure    (Bar) Max Vacuum            (-Kpa) Max Vacuum Flow (L/Min) Air Consumption  (L/Min) Noise (dBa) Smallest PU hose ID(mm)
SUP VACUUM EXH
BM5 4.5~6 85 35~37 12~21 50-65 2 5 8
BM10 70~76 28~43 55-68 2 8 10
BM20 141~152 55~86 60-68 4 10 12
BM30 5~6 175~221 87~123 60-68 6 12 15
